Rough-In Coordination Drawings On CAD

---

                                                              Rough-In Coordination Process On CAD

Rough-Ins - Once a final kitchen design is in scope, along with a cut booklet and utility schedule.

We will begin our Rough-In process. Our first step is to ensure that the cut booklet and the Utility schedule match. We will review and double-check the provided documents. Below is a bit more of our process

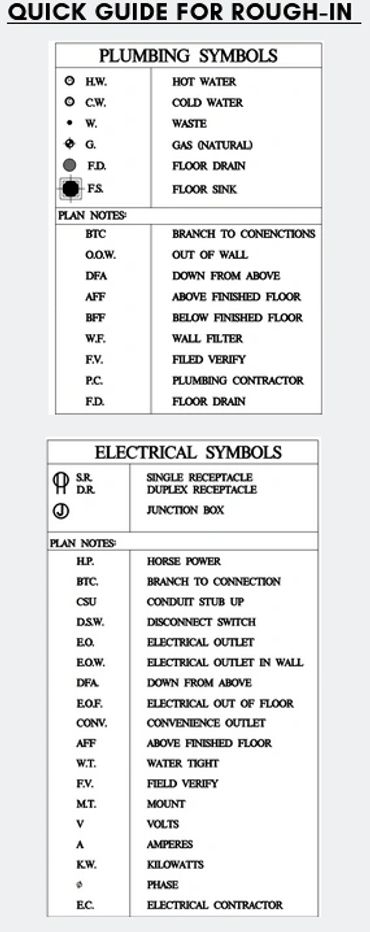

• On Auto CAD - (Request Version) Full Set of PDFs - Will show the utility connections needed for the requested space. We have a standard symbols page that we use, but will integrate your standards. Typically, we call out finished floor heights for each piece of equipment that needs utilities.

 Format-

• Sheet 1- Plumbing Connections Plan . Refer to bullets below for more info.
• Sheet 2- Electrical Connections Plan. Refer to bullets below for more info.
• Sheet 3- Special Conditions Plan.  Refer to bullets below for more info.
• Sheet 4- 2D Elevation if requested.
• Will include dimensions if needed

• Sheet 1 -Plumbing Connections Plan - Includes: Symbols that will represent Floor Drains, Floor Sinks, Direct Wastes, Hot & Cold water connections.

• Sheet 2- Electrical Connections Plan -  Includes:Symbols that will represent Outlets, Junction Boxes, and Data connections.

• Sheet 3 - Special Conditions Plan, Includes: Proper text styles and annotations to call out wall backing behind equipment that requires it.

We are NOT a Food Service Design Consultant Firm, simply a service to assist the process. All Plans Must be Reviewed By The Client.
